Decoding BSC Warnings: When Digital Gauges and Magnehelics Don’t Match
This image shows a Magnehelic-style differential pressure gauge, which measures the static pressure drop across the internal HEPA or ULPA filters of your biosafety cabinet
No, several crucial velocity parameters on the screen are currently operating far outside their safe range, as shown in the image below.
Fig. The image displays a digital control interface for a Class II Type A2 Biosafety Cabinet manufactured by Microfilt (India)
When operating correctly, these containment units keep personnel and samples safe via balanced, controlled airflow velocities.
Here is an analysis of the current readings against standard operating limits:
Velocity Readings (Critical Out of Range)
Table of Contents
Downflow Velocity: 0.55 m/s
Status: Out of Range (Too High). Standard guidelines and European EN 12469 regulations specify that laminar downflow should fall between 0.25 m/s and 0.50 m/s. Microfiltration equipment typically targets around 60 FPM (~0.30 m/s). A high downflow speed creates turbulence inside the cabinet, which can lead to cross-contamination of products or samples.
Exhaust Velocity: 6.38 m/s
Status: Alarmingly Out of Range. Normal face and intake/exhaust velocities across a Class II opening generally maintain standard baselines near 0.38 m/s to 0.51 m/s (75 to 100 FPM). A value of 6.38 m/s indicates extreme over-exhaustion. This could occur if the exhaust blower system is miscalibrated, operating at maximum capacity, or if an air balance damper is incorrectly positioned.
Pressure & Environment (Normal Range)
Exhaust Pressure (24.0 mm) & Downflow Pressure (18.0 mm): These represent differential pressures across the internal HEPA/ULPA filters. While physical magnehelic baselines vary depending on factory calibration and the specific filter brand, these readings appear stable and active.
Temperature (28°C) & Relative Humidity (72%): These parameters sit within a standard, non-hazardous ambient range for general laboratory conditions.
Proactive Next Steps
Because air velocity abnormalities compromise both product sterile conditions and user protection against biohazards, please perform the following checks before proceeding with lab work:
Check for Grille Obstructions: Make sure no laboratory equipment, pipettes, or waste bags are blocking the front intake grille or rear exhaust slots.
Verify Sash Height: Ensure the front glass sliding window is set exactly to its official working height marker.
Perform Blower Recalibration: Contact the laboratory’s facilities maintenance team or an authorized technician to check the variable speed motor settings and recalibrate the system.
Yes, this mechanical differential pressure gauge is currently reading within its acceptable operating range in this image.

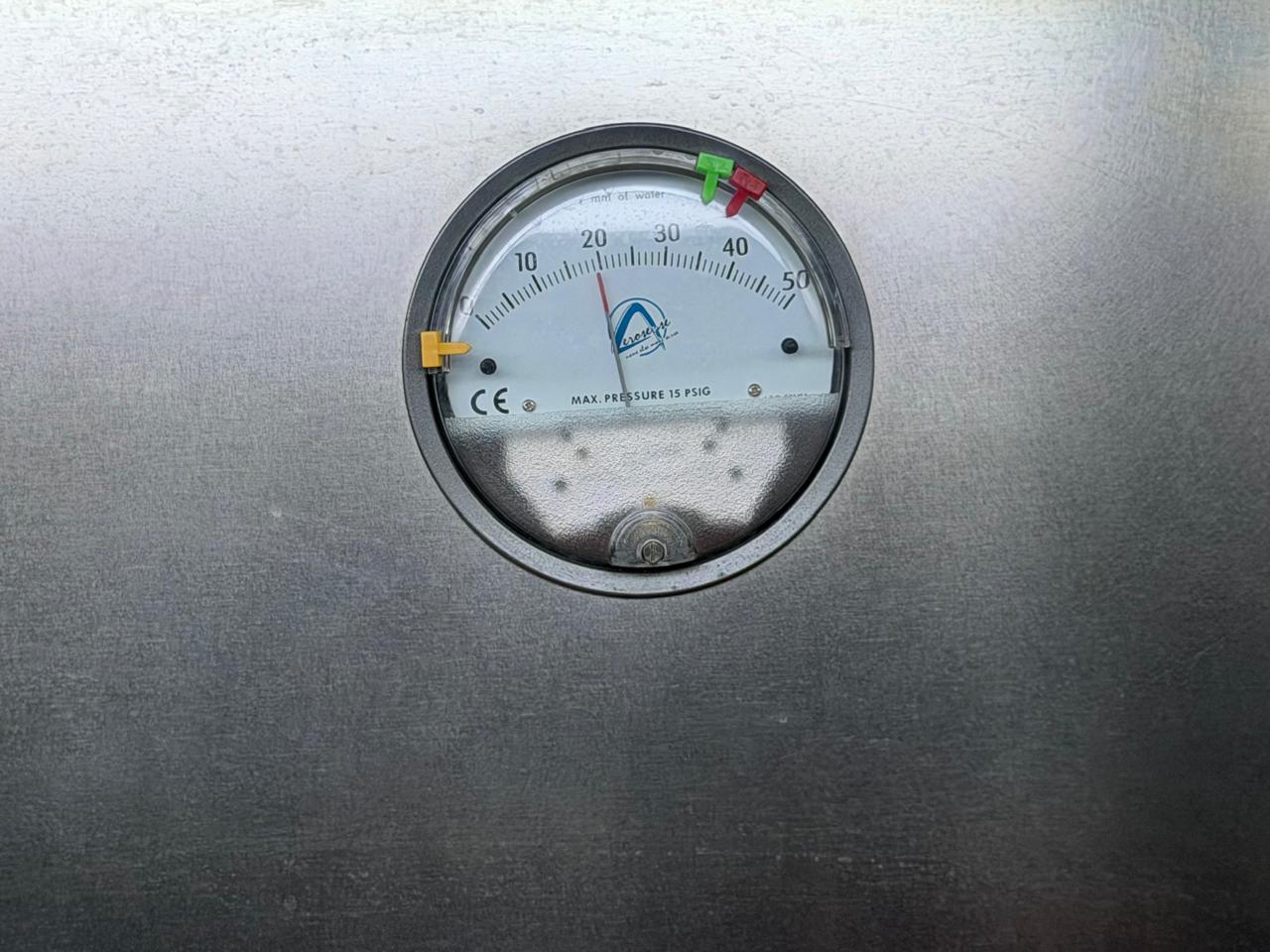

Fig. This image shows a Magnehelic-style differential pressure gauge, which measures the static pressure drop across the internal HEPA or ULPA filters of a biosafety cabinet
Here is a detailed breakdown of what the gauge indicates:
Gauge Reading Analysis
Current Pressure: ~19 mm of water
The red indicator needle rests just below the 20 mark, pointing precisely to 19 mm of water.
Status: Within Safe Limits (Normal)
Look closely at the colored plastic clips (setpoints) attached to the outer rim of the gauge.
The yellow clip marks the initial baseline pressure (~0 to 1 mm).
The green and red clips at the top mark the critical upper threshold or “dirty filter” limit (~39 to 42 mm of water).
Because the current reading (19 mm) is well below the green/red markers, the filter is not yet clogged or overloaded.
How Does This Link to Previous Readings
This manual mechanical reading provides context for the digital screen from the previous message:
Digital vs. Mechanical Sync: The digital screen reported a “Downflow Pressure” of 18.0 mm. This mechanical gauge reads 19 mm.
The Verdict: The minor 1 mm difference between the digital sensor and this mechanical dial is perfectly normal. This proves that cabinet’s internal filters are physically clean and structurally intact.
The Core Problem: Since the pressure is correct, but air velocities (6.38 m/s exhaust) are severely elevated, the issue is not a blocked filter. Instead, it confirms an electronic calibration error, an over-speeding blower motor, or an incorrect damper setting.
Recommended Next Steps
Log the baseline: Write down this 19 mm value in the equipment logbook.
Proceed with motor service: Keep the cabinet turned off or in standby until a technician recalibrates the high velocity issues identified on the digital screen.
