Laminar Air Flow (LAF)Hood/Cabinet: Introduction, Principle, Parts, Handling Procedure, Uses, and Keynotes
Laminar Air Flow (LAF)Hood or Cabinet with A sleek control panel and power switch mounted on a white wall above a textured gray backsplash
Introduction
Table of Contents
A Laminar Air Flow cabinet creates a sterile work environment by capturing dust and microbes through a filtration system and exhausting the air across the work surface in a uniform, unidirectional stream. It provides product protection but does not protect the operator from hazardous pathogens.
Working Principle
The system relies on a continuous, displacement-free flow of air through high-efficiency filters.
Air Intake: Room air enters via a pre-filter.
Filtration: A blower forces air through a HEPA/ULPA filter.
Laminar Flow: Air moves in a parallel, uniform velocity stream.
Displacement: Continuous pressure prevents ambient, contaminated air from entering the cabinet.
Key Parts and Components

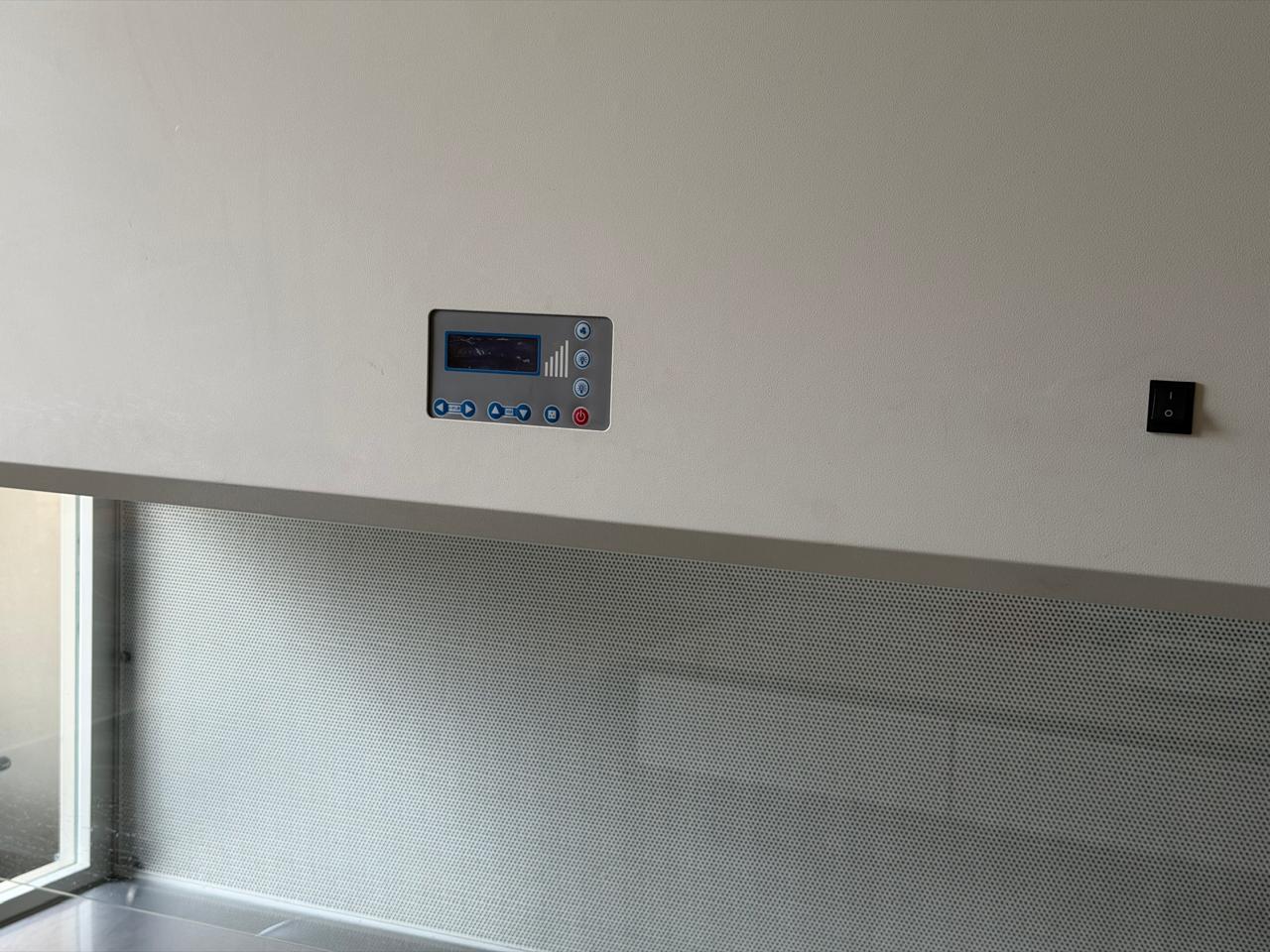

Fig. Laminar Air Flow (LAF)Hood or Cabinet with A sleek control panel and power switch mounted on a white wall above a textured gray backsplash
Cabinet Body: Made of stainless steel or robust plastic for easy sanitization.
Pre-Filter: Captures large dust particles to extend the main filter’s lifespan.
HEPA Filter: High-Efficiency Particulate Air filter removing 99.97% of particles 0.3 µm.
Blower/Fan: Draws room air in and forces it through the filters.
UV Lamp: Emits short-wave ultraviolet light to sterilize the interior surfaces before use.
Fluorescent Light: Provides high-visibility illumination for the operator.
Sash / Front Panel: Glass or plastic shield that slides to open or close the workspace.
Airflow Types
Horizontal LAF: Air moves from the back wall directly forward toward the user. Cleanest for the sample, but exposes the operator to fumes or particles.
Vertical LAF: Air moves downward from the top ceiling filter. Safer for the operator, minimizes horizontal cross-contamination.
Handling Procedure
Follow these strict operational steps to maintain sterility:
Pre-operational Prep: Wear a lab coat, gloves, face mask, and hairnet.
Surface Sterilization: Wipe down the interior walls and bench with 70% ethanol.
UV Decontamination: Close the sash, turn on the UV light, and leave for 15–30 minutes.
Purge Air: Turn off the UV light, turn on the blower and visible light, and wait 5 minutes.
Material Entry: Wipe all item exteriors with 70% ethanol before placing them inside.
Execution: Perform work in the center of the zone; avoid blocking airflow pathways.
Post-operational Clean: Remove all materials, wipe down surfaces with ethanol, and turn off the blower.
Primary Uses
Microbiology: Inoculation, bacterial culture transfers, and media preparation.
Plant Tissue Culture: Micropropagation and sterile plant cell cultivation.
Pharmaceuticals: Compounding sterile IV bags, eye drops, and non-hazardous drugs.
Electronics: Assembling dust-sensitive semiconductor devices and microchips.
Keynotes and Safety Warnings
Product vs. Personnel: LAF hoods protect the product only. Never use them with biohazardous agents, infectious viruses, or toxic chemicals.
UV Light Hazard: Never work inside the hood or look directly into it while the UV light is active.
Air Velocity: Standard laminar airflow velocity is typically maintained around 0.3 to 0.5 m/s.
Obstruction Risk: Avoid placing large equipment near the back or top filters to prevent turbulence.
