TB-LAMP: Introduction, Principle, Procedure, Result Interpretation, and Keynotes

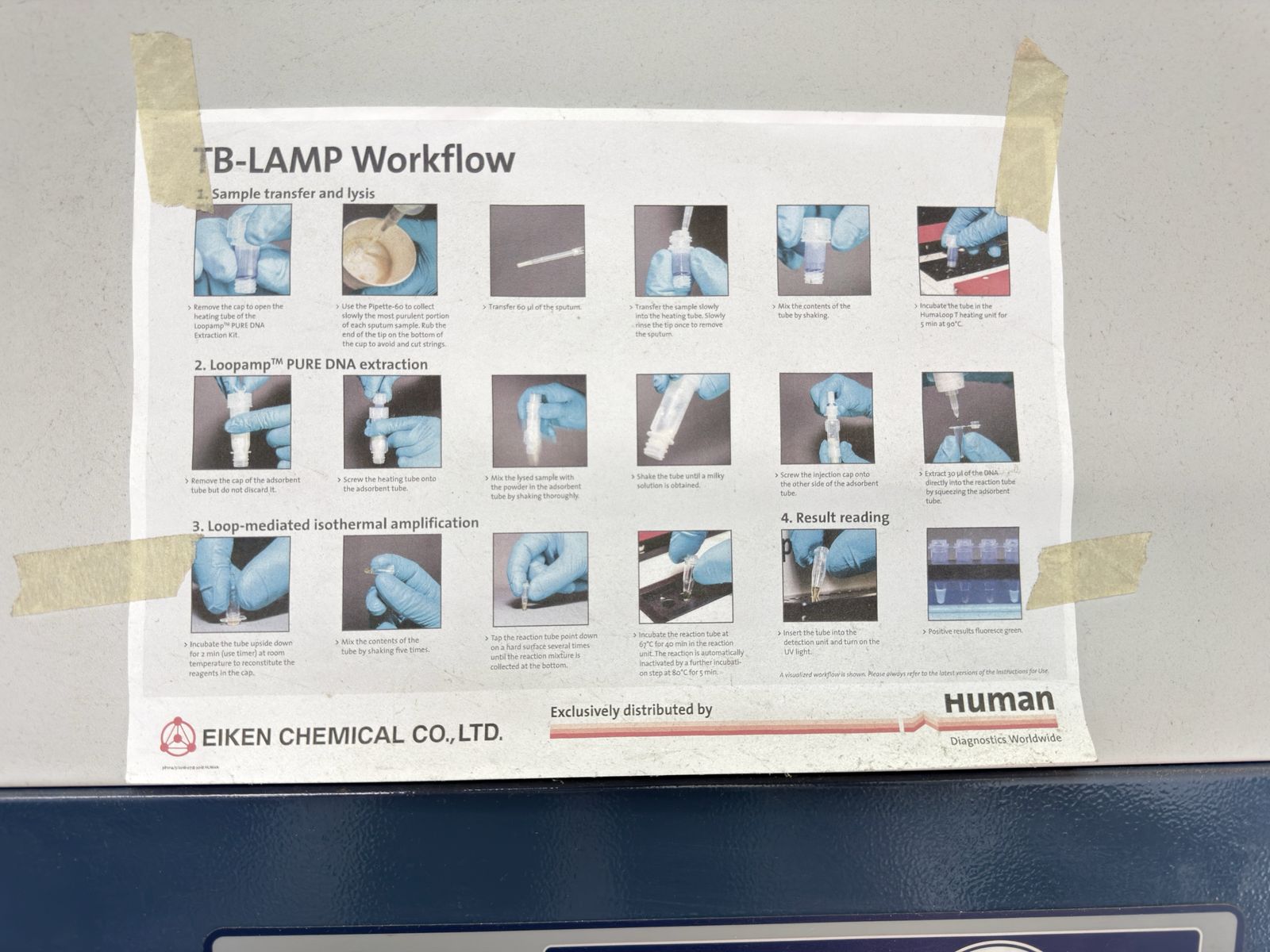

TB-LAMP Flowchart
Introduction
Table of Contents
TB-LAMP (Tuberculosis Loop-Mediated Isothermal Amplification) is a manual, rapid molecular diagnostic test endorsed by the World Health Organization (WHO) to detect the Mycobacterium tuberculosis complex (MTBC) in sputum samples. It serves as a highly sensitive alternative to traditional sputum smear microscopy, particularly optimized for resource-limited and peripheral healthcare settings.
Principle
TB-LAMP relies on auto-cycling, high-efficiency DNA strand displacement activity driven by the Bst DNA polymerase enzyme under isothermal conditions (a constant temperature of roughly 64°C to 67°C). Unlike conventional Polymerase Chain Reaction (PCR), it does not require an expensive thermal cycler machine.
Primer Specificity: The assay utilizes 6 specialized primers that recognize 8 distinct regions on the target MTBC DNA sequence, ensuring exceptional diagnostic specificity.
Loop Primers: Added loop primers accelerate the reaction, enabling a 10⁹ to 10¹⁰-fold DNA amplification within 30 to 40 minutes.
Detection Chemistry: The reaction generates a massive amount of DNA and a byproduct called magnesium pyrophosphate. Visual detection is enabled by a double-stranded DNA-binding fluorescent dye (such as calcein) already integrated into the reaction tubes.
Collect 60 μL to 120 μL of raw sputum using a wide-bore matching pipette.
Transfer it into a heating tube filled with extraction/lysis buffer.
Mix well and incubate inside a heating block (such as the HumaLoop T unit) at 90°C for 5 minutes to lyse cells and inactivate the pathogen safely.
Allow the mix to cool down for 2 minutes.
2. Loopamp™ PURE DNA Extraction
Screw an adsorbent tube tightly onto the heating tube to pierce its inner seal.
Shake thoroughly to bind potential PCR inhibitors to the specialized powder matrix within the adsorbent column.
Fit a delivery nozzle onto the tube and squeeze to express exactly 30 μL of purified DNA eluate directly into the reaction tube.
3. Isothermal Amplification
Invert the reaction tubes several times to fully dissolve the dried LAMP reagents localized inside the tube cap.
Place the mixed tubes into the heating block chamber set precisely at 67°C for 40 minutes.
The system automatically stops the reaction once the amplification timer runs out.
4. Result Reading
Immediately move the intact, unopened reaction tubes over to the accompanying fluorescence detection slot.
Observe the visual color reaction under ultraviolet (UV) or LED light.
Result Interpretation
Results are interpreted visually with the naked eye under UV/LED light based on comparative fluorescence:
Visual Appearance Under UV/LED Light
Result Interpretation
Clinical Status
Intense, bright green fluorescence
Positive
Mycobacterium tuberculosis complex DNA is detected.
Clear / No fluorescence (remains dark)
Negative
MTBC DNA is not detected in the sample.
No fluorescence in Positive Control OR Green fluorescence in Negative Control
Invalid
Test run failed. Must repeat the process using a new kit batch.
Keynotes
Infrastructure Benefits: It acts as a point-of-care (POC) asset because it only requires a basic heating block and a steady power source (which can be safely supplemented by portable solar panels or external batteries in remote clinics).
No Drug Resistance Mapping: Unlike GeneXpert (Xpert MTB/RIF), TB-LAMP cannot detect genetic markers for drug resistance (e.g., rifampicin resistance). It acts solely as a binary diagnostic identifier for active TB cases.
Sputum Limitations: The WHO validates TB-LAMP performance primarily for direct raw sputum collection. Other non-invasive clinical materials (urine, blood plasma, or CSF) have not yet been globally standardized for this specific system.
Treatment Monitoring: Because it amplifies target DNA segments, TB-LAMP will return positive outcomes from both live and dead bacilli. Consequently, conventional sputum smear microscopy remains necessary to monitor patient response to ongoing anti-TB drug regimens.
Quality Control Overhead: Every individual testing cycle batch requires running distinct positive and negative controls alongside patient samples, adding minor cost footprints to operations.
